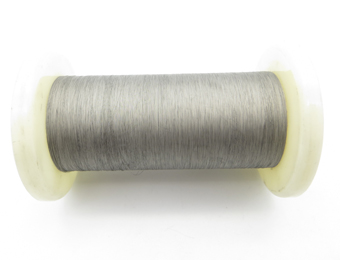

Fortu Tech is an ISO Certified Corporation located in China and specializes in manufacturing Ti-22V-4Al wire. We have more than 20 years of production experience. Our products are Conflict Free material.
| Common specifications | ||||||||
| Diameter inch | 0.01 | 0.02 | 0.03 | 0.04 | 0.05 | 0.08 | 0.1 | 0.125 |
| Diameter mm | 0.254 | 0.508 | 0.762 | 1.016 | 1.27 | 2.032 | 2.54 | 3.175 |
Fortu Tech can customize the Ti-22V-4Al wire according to your demand. Welcome to contact us if you have any questions or requirements.
Titanium alloys Ti-22V-4Al wire of us meets the standard.
Ti-22V-4Al wire is a high-performance metastable β-type titanium alloy material wire. In the solution state, Ti-22V-4Al wire has unparalleled cold forming ability at room temperature. Ti-4Al-22V wire can be cold worked like steel. After aging treatment, Ti-22V-4Al wire has extremely high strength and good strength-toughness matching.
Ti-22V-4Al wire also has excellent lightweight effect and corrosion resistance. The unique performance combination of Ti-22V-4Al wire makes it irreplaceable in the application of high-strength fasteners in high-tech fields such as aerospace. Ti-4Al-22V wire is one of the key materials for achieving weight reduction, efficiency improvement and reliability enhancement.
| Chemical Requirements Ti-4Al-22V wire | |||||||
| Element % | C | N | O | H | V | Al | Fe |
| Content Maximum % | 0.05 | 0.03 | 0.18 | 0.01 | 20-23 | 3-4.5 | 0.15 |
If you have inquiry or want to discuss your design with us, please write email to us.
We will reply your email within 24 hours.
The tensile strength of Ti-22V-4Al wire typically ranges from 900 MPa to 1100 MPa, which is significantly higher than that of common stainless steel wires (approximately 500 MPa to 700 MPa), but slightly lower than that of certain high-strength nickel-based alloy wires (whose strength can exceed 1200 MPa). Nevertheless, Ti-22V-4Al wire boasts excellent specific strength (the ratio of strength to density), and possesses greater load-bearing capacity under the same weight. This characteristic gives it significant advantages in lightweight design.
In terms of fatigue performance, the TB13 titanium alloy wire demonstrates excellent resistance to cyclic loads, making Ti-4Al-22V alloys wire particularly suitable for applications that endure vibration or repetitive stress over a long period, such as sports equipment and precision mechanical components. In contrast, stainless steel wires may experience faster crack propagation in fatigue environments, while nickel-based alloy wires, although having excellent fatigue performance, are more costly.
The production of Ti-22V-4Al is a complex and precise process. The entire process needs to be carried out in a protective atmosphere or vacuum environment to prevent gas contamination. Production begins with a rigorous selection and inspection of raw materials to ensure that all incoming chemical components meet the standard requirements.
Subsequently, the material is melted using a vacuum self-consuming arc furnace (VAR) to obtain a homogeneous Ti-22V-4Al ingot. The ingot undergoes multiple forging and rolling processes to be processed into a Ti-22V-4Al rod.
Ti-22V-4Al bar is gradually reduced in diameter to the target size through the drawing process. During this process, multiple intermediate annealing treatments are required to eliminate work hardening and restore the material's plasticity.
Finally, the surface of the Ti-22V-4Al welding wire is cleaned to remove oxide scales and oil stains, and then it is wound and packaged to complete the preparation.
In the modern engineering field that pursues ultimate performance and efficiency, every innovation in materials drives technological advancements. Among the numerous advanced materials, the Ti-22V-4Al titanium alloy wire, with its unique combination of properties, has become an indispensable key material in the eyewear industry, aerospace, medical, and high-end manufacturing sectors.
Eyewear Industry: Ultra-Elastic Temple and Frontal Frame: The core framework of the temple is made of fine-diameter Ti-22V-4Al wire (such as φ1.0mm - φ2.0mm). The outside can be covered with softer materials (such as silicone, thin plastic) to enhance wearing comfort. Hinges are the smallest and most easily damaged components on eyewear. The core shaft or micro-spring components of the hinge can be made of Ti-22V-4Al wire. High-performance Hinges: This is one of the most promising applications. The hinge is the smallest and most easily damaged component on eyewear. The core shaft or micro-spring components of the hinge can be made of Ti-22V-4Al wire. Nose Pad Arms and Ultra-Light Structure: The supporting structure of the nose pad is made of extremely fine Ti-22V-4Al wire, combined with silicone nose pads. Artistic Design of Full Frame: Some top eyewear brands that pursue ultimate design and artistic sense may use Ti-22V-4Al wire through welding, weaving, etc. to create hollow, minimalist, or extremely complex "sculptural" frame structures.
Aerospace industry: This is the most important and crucial application field for Ti-22V-4Al wire. For aircraft and spacecraft, every ounce saved means higher fuel efficiency, longer range, and greater payload capacity. Spring elements made of Ti-22V-4Al wire can be used to manufacture various suspension springs, compensating springs, and sealing springs. Its high specific strength and fatigue life ensure long-term stability in extreme environments.
Medical devices: Ti-22V-4Al wire is processed into auxiliary components for implantable devices and can be used as springs and connectors in some non-directly implantable medical devices.
Racing cars and high-performance vehicles: Ti-22V-4Al wire is used to manufacture suspension springs, valve springs and various fasteners that reduce the sprung mass, directly enhancing the vehicle's performance.
Petrochemical industry: Ti-22V-4Al wire is used for manufacturing equipment parts and springs in harsh corrosive environments.
Sports equipment: Ti-22V-4Al is used to manufacture components for high-end bicycles, golf clubs, etc., which require lightweight and high strength.
In addition to Ti-22V-4Al alloys wire, we also produce Ti-22V-4Al alloys Tube & Pipe, Ti-22V-4Al alloys Sheet & Plate, Ti-22V-4Al alloys Ingot, Ti-22V-4Al alloys Pellets, Ti-22V-4Al alloys Strip, Ti-22V-4Al alloys Rod, Ti-22V-4Al alloys Disc, Ti-22V-4Al alloys Target, Ti-22V-4Al alloys machined parts.
